Ice Box Kit - 7 cu ft Combo Freezer/Refrig Box

Vacuum Insulated Ice Box Kit - 7.0 cu ft

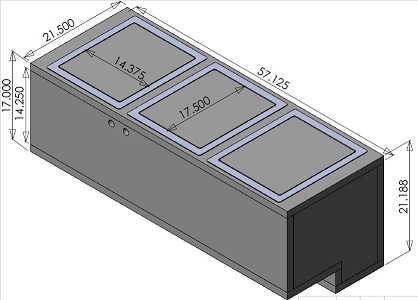

The diagram below shows the 011-0012 7.0 cu ft combo Freezer / Refrigerator Ice box kit which is designed for RPARTS Medium hatches (not included in price). The drawing below list the parts that make up the kit. Please note: the RPARTS Medium Hatch (item 9 in parts list) must be purchased separately.

Click here for the full pdf file for the drawing of the 011-0012 Ice box kit 7.0 cu ft contains multiple views and an exploded diagram.
